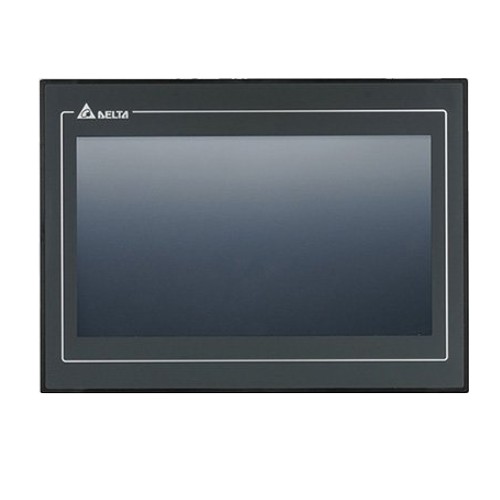

DELTA PLC DOP-100 15″ Advanced HMI XVGA TFT
DOP100-MX series Multi-media type
DOP100-MX series adopts a “narrow frame”, wide screen design with advanced communication capabilities (multilingual inputs) and enhanced multi-media functions to meet different applications.
- 1024 x 768 pixel 8GB ROM
- 1G RAM DDR3 1000Mhz
- Colour- 24bit
- Dual core 1GHz speed processor for higher computing performance
- Multi-media functions: Camera (analog / IP),video playback , VGA input, event trigger
- Multiple Interfaces: 4 COM ports, 2 Ethernet ports, 1 Mini USBMini Slave 2.0, 1 USB Host 2.0
| SERIES | DOP- 100-MX |
| DESCRIPTION | Advance HMI touch panel with Ethernet built-in |
| DISPLAY SIZE | 15" (304 x 228) |
| ETHERNET | Yes |
| COLOURS | 65.536 - enhanced resolution for more realistic images and colourful, vivid display |
| PIXEL RESOLUTION | 1024 x 768 |
| HOST PORTS - SD/USB | SD/USB |
| NUMBER OF COM PORTS | 4 |
| PANEL CUTOUT (MM) | 372.4 X 283.7 |
Additional information
| Weight | 3 kg |
|---|---|
| Dimensions | 6.4 × 29.6 × 38.8 cm |
