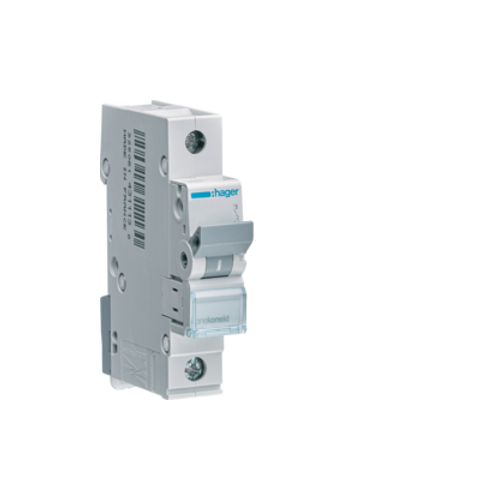

MA Series Miniature Single Pole Circuit Breakers 6kA C Curve
Price range: R114.99 through R199.99
Miniature circuit breakers (MCB’s)
- Protection and control of circuits against overload and short circuits Suitable for domestic and commercial installations.
- Suitable for domestic and commercial installations.
Features:
- Compatible for DC voltage applications
- Accepts clip-on: auxiliaries, shunt trip, undervoltage and earth leakage
| SERIES | MA series |
| CURRENT RATING | VARIOUS |
| NUMBER OF POLES | 1 |
| BREAKING CAPACITY | 6 kA |
| DESCRIPTION | Miniature circuit breaker |
| WIDTH IN 17.5MM | 1 |
| CURVE | C (5-10 In) |
| SANS/IEC | 60947-2 / SANS556 |
| OPERATING TEMPERATURE | -25 to 60 °C |
| NEUTRAL POSITION | Left |
Additional information
| Weight | 0.15 kg |
|---|---|
| Dimensions | 70 × 17.5 × 83 cm |
| Current Rating | 2A, 6A, 10A, 16A, 20A, 25A, 32A |
