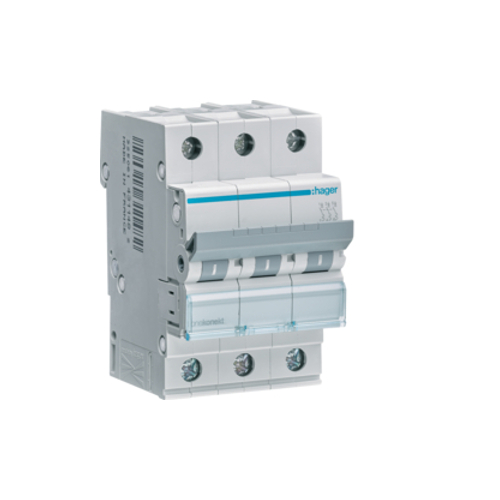

MA Series Miniature Three Pole Circuit Breakers 6kA C Curve
Price range: R399.99 through R529.99
Miniature circuit breakers (MCB’s)
- Protection and control of circuits against overload and short circuits Suitable for domestic and commercial installations.
- Suitable for domestic and commercial installations.
Features:
- Compatible for DC voltage applications
- Accepts clip-on: auxiliaries, shunt trip, undervoltage and earth leakage
| SERIES | MA series |
| CURRENT RATING | Various |
| NUMBER OF POLES | 3 |
| BREAKING CAPACITY | 6 kA |
| DESCRIPTION | Miniature circuit breaker |
| WIDTH IN 17.5MM | 3 |
| CURVE | C (5-10 In) |
| SANS/IEC | 60947-2 / SANS556 |
| OPERATING TEMPERATURE | -25 to 60 °C |
| NEUTRAL POSITION | Left |
Additional information
| Weight | 0.3 kg |
|---|---|
| Dimensions | 70 × 52.5 × 83 cm |
| Current rating | 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A |
