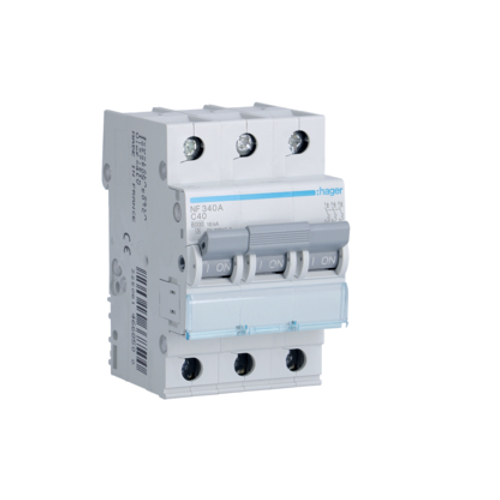

NF/HLF Series Miniature Three Pole Circuit Breakers 10kA C Curve
Price range: R809.99 through R829.99
Miniature circuit breakers (MCB’s)
For the protection and control of circuits against overload and short circuits. Suitable for commercial and industrial installations.
Features:
- Compatible for DC voltage applications
- Field fittable accessories: Auxiliary/alarm contacts, Shunt trip device, Undervoltage release, Earth leakage
| SERIES | NF series |
| CURRENT RATING | VARIOUS |
| NUMBER OF POLES | 2 |
| BREAKING CAPACITY | 10 kA |
| DESCRIPTION | Miniature circuit breaker |
| WIDTH IN 17.5MM | 2 |
| CURVE | C (5-10 In) |
| SANS/IEC | 60947-2 |
| IEC 60898 | 6 kA |
| RATED OPERATIONAL VOLTAGE | 240/400V |
| FREQUENCY | 50-60Hz |
Additional information
| Weight | 0.2 kg |
|---|---|
| Dimensions | 0.7 × 0.525 × 0.83 cm |
| Current rating | 6A, 10A, 16A, 20A, 25A, 32A |
