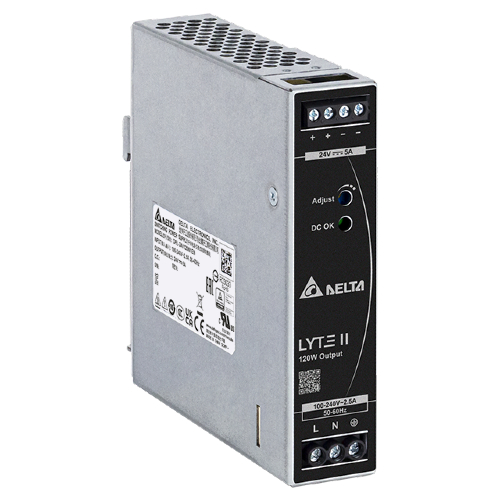

DRL-24V120W1EN LYTE II Series Power Supply

Power supplies

Delta’s LYTE II DIN rail power supply series is designed for cost sensitive users who need to fulfill essential features needed for many general industrial applications, without compromising on quality and reliability.

General features:

• Product features: RoHS compliant
• Full corrosion resistant aluminium chassis
• Provides – overload, overvoltage and thermal protection
• Conformal coating on PCBAs to protect against chemical and dust pollutants
• Certification: UL508, EN 60950, cULus 60950, EN 50178, EN 60204, GS, CCS Aus
• Wide input voltage range 85 to 264 VAC (1 phase) – 320 to 600 VAC (3 phase)
• Power boost (enables reserve power for reliable start up of loads with high inrush currents)

LYTE series

LYTE DIN rail economically priced, compact Power Supplies for general applications.

Features:

• Universal AC input voltage range
• Efficiency – up to 90.0% @ 230 VAC
• Built-in constant current circuit for reactive loads
• Conforms to harmonic current IEC/EN 61000-3-2, Class A
