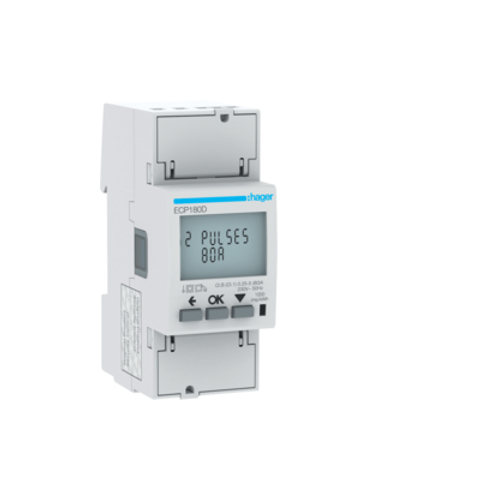

Single Phase kWh Meter 80A
Single phase energy meters (kWh meters)
Features:
- Accuracy: 1%
- Direct reading
- Impulse output
- Backlit LCD display
- Total counter and partial (resettable) counter
- Class 1 according to IEC 62 053-21 and EN 50470
- LED indication blinks according to consumption (1 pulse = 100wh)
| SERIES | ECP series |
| ACTIVE ENERGY | Class 1, IEC 62 053-21 and EN 50470 |
| CURRENT RATING | 80A |
| DESCRIPTION | Single phase kWh meter |
| OPERATION TYPE | Direction connection |
| ACCURACY | 0.01 |
Additional information
| Dimensions | 6 × 3.6 × 9.2 cm |
|---|
