Type 236-Brass Body Flow Sensor 14…240l/min
R8,050.00

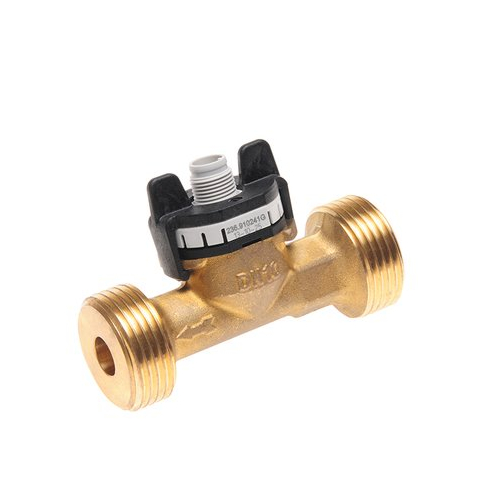

Type 236 series – Brass bodied flow sensor
The Type 236 is based on the Type 210 but incorporates a brass housing. The vortex sensor has a rugged construction of brass connection.
Excellent media resistance (measuring element not in contact with the media)
Key features:
- Brass (CuZn40PbZ), PA6T/6I (40% GF)
- Measuring element not sensitive to debris
- Temperature non-sensitive measuring principle
- Direct temperature measurement in the medium
- Flow measuring with voltage, current or frequency output
- Can be provided with additional internal PT1000 temperature sensor
| SERIES | Type 236 |
| NOMINAL DIAMETER | DN 32 |
| MEASURING RANGE (I/m) | 14 ... 240 |
| POWER SUPPLY | 8 - 33 VDC |
| OUTPUT (DC) | 4 - 20 mA |
| DESCRIPTION | Brass bodied flow sensors |
| CONNECTION | G1 ¾ |
| MATERIAL | Brass (CuZn40PbZ), PA6T/6I (40% GF) |
| MEASURING PRINCIPLE | Vortex - Piezoelectric sensor element |
| DRINKING WATER APPROVAL | KTW, W270, WRAS |
| ACCURACY | At < 50% fs (water) < 1 % fs |
| RESPONSE TIME | < 500 ms |
| FLOW MEDIA | Heating water with standard additives, potable water (hot/cold) |
| INDEX PROTECTION IP | IP65 |
| MEDIUM TEMPERATURE | -40... +125 °C |
| ELECTRICAL CONNECTION | Fibreglass-reinforced plastic PA6T/6I (40% GF) |
| FREQUENCY SQUARE PULSE SIGNAL | < 0.1 ... > 4.75 V |
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 6 × 1.5 × 1.5 cm |
