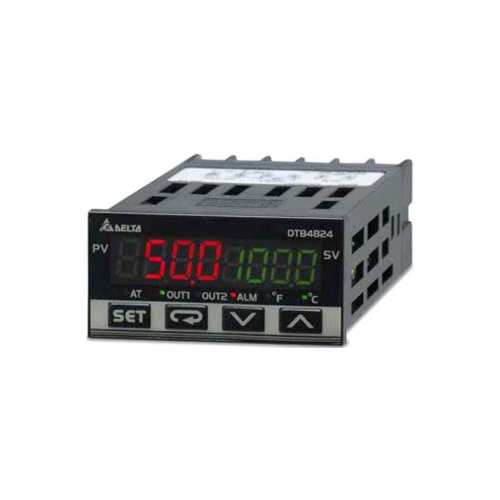

DTB4824RR-Advanced Temperature Controller 48x24mm
R3,273.19
DTB series “advanced” temperature controller
Compared with DTA series, DTB is additionally equipped with linear voltage signal output and dual output control, capable of executing heating and cooling controls simultaneously in a temperature control system and fast reaching the target temperature.
Features:
- 3 groups of alarm outputs
- Two groups of outputs to auto-tune 2 groups of PID parameters
- Sampling rate: Analog input: 0.15 sec, Thermocouple or platinum RTD 0.4 seconds
- Built-in dual loop output control for heating / cooling (RS485 digital comm. 2.400 – 38.400bps)
| SERIES | DTB series |
| SUPPLY VOLTAGE | 100 - 240 VAC |
| FREQUENCY | 50/60 Hz |
| INDEX PROTECTION IP | IP65 |
| PANEL SIZE (MM) - W X H | 48 x 24 |
| THERMOCOUPLE | Type (K-J-T-E-N-R-S-B-L-U-TXK) - Platinum RTD: Pt100, JPt100 |
| DESCRIPTION | Advanced temperature controller |
| LCD DISPLAY | Process Value (PV) Red colour - Set point (SV) Green colour |
| OUTPUT 1 | Relay |
| OUPUT 2 | Relay |
Additional information
| Weight | 0.5 kg |
|---|---|
| Dimensions | 6.0 × 4.8 × 2.4 cm |
