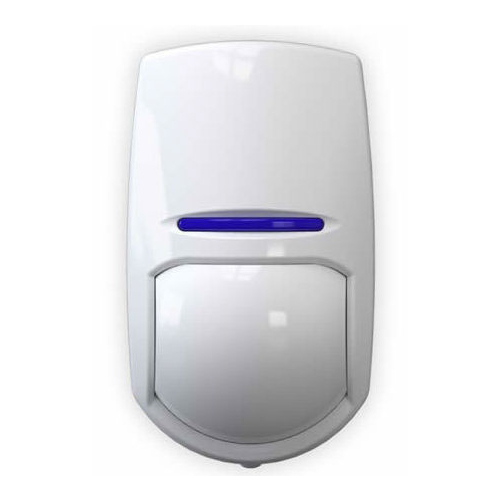

PYRONIX Indoor PIR Motion Sensor FPKX15DD
R239.99
Digital passive PIR detector
| Application: | Indoor |
| Pyroelectric sensor: | Double |
| Sensor type: | Passive Infra Red (PIR) |
| Range: | 15 m / 85 ° |
| Sensitivity adjustment: |
|
| Pet immunity: |  |
| Maximal outputs load: | 50Â mA / 60Â VÂ DC, 42Â VÂ ACÂ RMS |
| Digital temperature compensation: |  |
| Alarm output: | NC / EOL-NC / 2EOL-NC |
| Power supply: | 9Â ... 16Â VÂ DCÂ / 16Â mA at 12Â V (max) |
| Target speed range: | 0.3Â ... 3Â m/s |
| Protection class (Grade): | Grade 2 |
| Operation temp: | -30 °C ... 70 °C |
| Weight: | 0.1Â kg |
| Dimensions: | 68Â x 115Â x 50Â mm |
| Manufacturer / Brand: | PYRONIX |
| SAP Code: | 361300085 |
| Manufacturer's code: | KX15DD |
Additional information
| Weight | 0.4 kg |
|---|---|
| Dimensions | 6 × 10 × 5 cm |
